CS5466

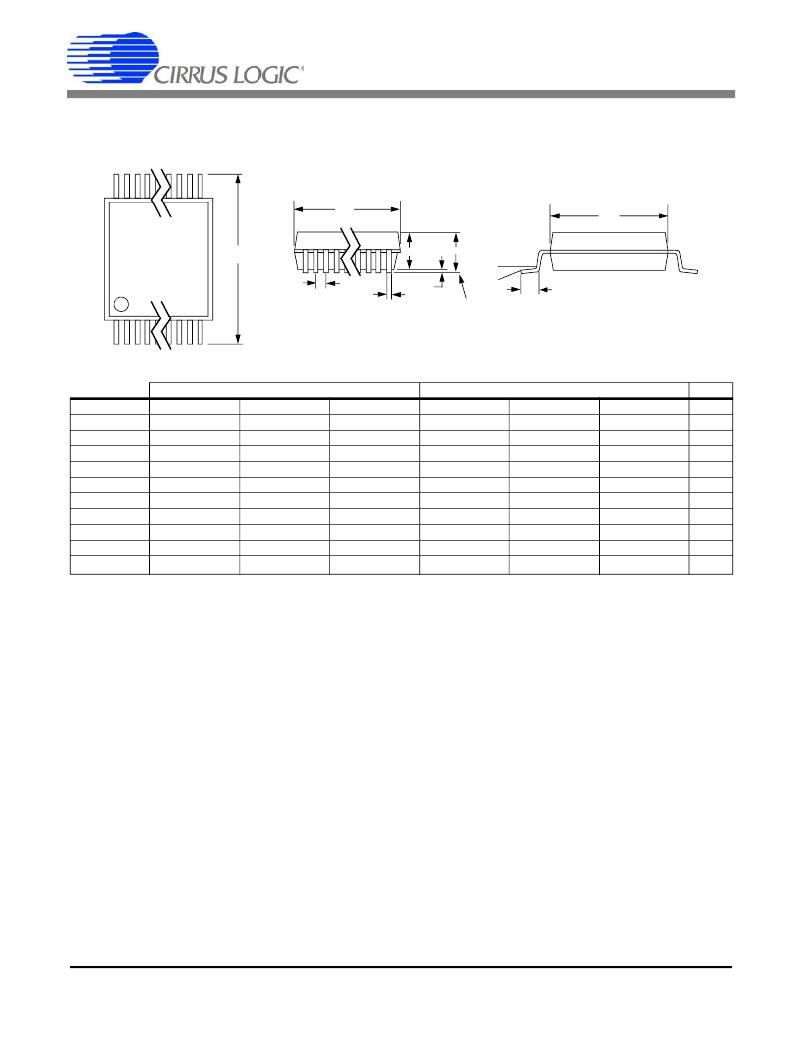

6. PACKAGE DIMENSIONS
24L SSOP PACKAGE DRAWING
N
D
E1 1
E
A2
A
?
b
e
2
A1
L
END VIEW
SEATING
1 2 3
TOP VIEW
SIDE VIEW
PLANE
INCHES
MILLIMETERS
NOTE
DIM
A
A1
A2
MIN
--
0.002
0.064
NOM
--
0.006
0.068
MAX
0.084
0.010
0.074
MIN
--
0.05
1.62
NOM
--
0.13
1.73
MAX
2.13
0.25
1.88
b
D
E
E1
e
L
?
0.009
0.311
0.291
0.197
0.022
0.025
0°
--
0.323
0.307
0.209
0.026
0.03
4°
0.015
0.335
0.323
0.220
0.030
0.041
8°
0.22
7.90
7.40
5.00
0.55
0.63
0°
--
8.20
7.80
5.30
0.65
0.75
4°
0.38
8.50
8.20
5.60
0.75
1.03
8°
2,3
1
1
JEDEC #: MO-150
Controlling Dimension is Millimeters.
Notes: 1. “D” and “E1” are reference datums and do not included mold flash or protrusions, but do include mold
mismatch and are measured at the parting line, mold flash or protrusions shall not exceed 0.20 mm per
side.
2. Dimension “b” does not include dambar protrusion/intrusion. Allowable dambar protrusion shall be
0.13 mm total in excess of “b” dimension at maximum material condition. Dambar intrusion shall not
reduce dimension “b” by more than 0.07 mm at least material condition.
3. These dimensions apply to the flat section of the lead between 0.10 and 0.25 mm from lead tips.
DS659F2
